modular galvanized water tank,galvanized steel water tank

  • modular galvanized water tank,galvanized steel water tank
  • modular galvanized water tank,galvanized steel water tank
  • modular galvanized water tank,galvanized steel water tank
  • modular galvanized water tank,galvanized steel water tank

modular galvanized water tank,galvanized steel water tank

    Unit Price: 500~10000 USD
    Min. Order: 1 set
    Packaging: Steel frame or wooden box
    Supply Ability: 1000 Square Meter/Square Meters per Month
    Port: All China ports

Product Description

modular galvanized water tank,galvanized steel water tank
Product Description

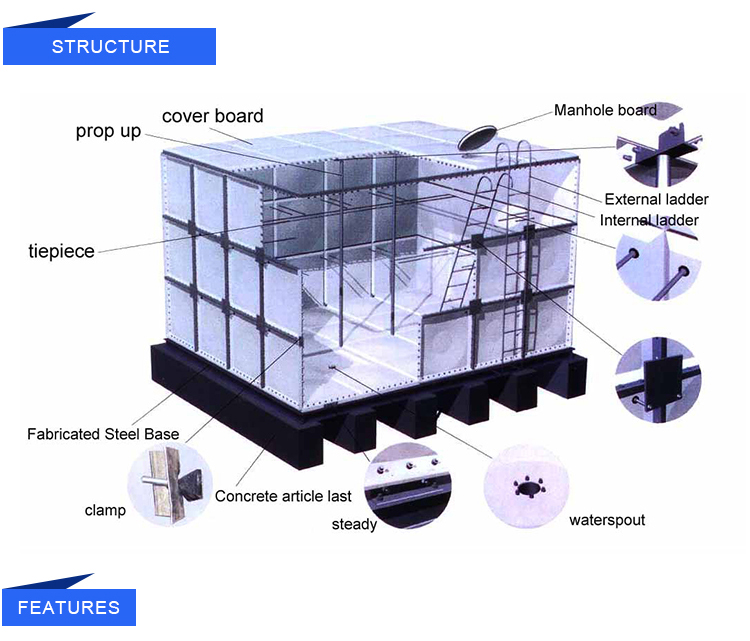

Galvanized Steel Combined Water Tank is punched by Q235A into 1220mm*1220mm or 1000mm*1000mm and 1000mm*500mm, 500mm*500mm standard panels, drilling around, after HDG treatment, assembly at site. When combined, the gap between two standard panels is sealed by silicon pad, connected by bolts.
Product name
Galvanized steel water tank
Material composition
Q235 steel
Product Size
100*1000mm,1000*500mm,500*500mm
Panel Thickness
3mm,2.5mm,2mm,1.5mm, it is different according the size of the tank.
Tank Volume
1-1000m3
Connection way
 bolt link
Eco-Friendly
Yes
Application
water storage
Process technique
Moulding
Water capacity varies from 1.0 cubic meter to 1000 cubic meters, height may reach as great as 5 meters.
Inflow, outflow tubes as well as return tube's diameter and place is decided by the designer, passages of at least 7000mm is needed around the tank.
Raw material: Q235 steel;

Panel size: 1x1m, 1x0.5m, 0.5x0.5m;

Process technique: moulding;

Connection way: Bolts and nuts;

Panel thickness:3mm,2.5mm,2mm,1.5mm, it is different according the size of the tank.
1. Easy handle and install,free volume design,no leakage,ideal mechanical structure and meet fire and building standard.
2. Anti-corrosion, anti-aging, no distorsion, no infiltration .
3. Easy to clean and conveniently to install and assemble.
4. It can storage not only hot water, but also cold water, and has a better shockproof and shock resistant ability.
Bolt. nut & washers: Galvanized.
Sealing material: Non-toxic P.V.C foam tape shall be used in between the joints
Covers:The tank cover shall be constructed from 1.2mm to 3.0mm of thickness stainless steel 304 material according to the requirement
Flanges :The sectional panels shall be pressed to double flanges at the angles of 45 degree and 90 degree to the face of the plateon four sides.
Reinforcement Method :All tanks are internally braced with angle stays to endure the rigidity of the tank when filled with the water. The Top panel is supported by top panel support, which shall be made of stainless steel grade 304 or 316 material according to requirement.
Precautions
1.When you order should provide water tank size, take over the place, diameter size.
2.Water tank can be supporting supply.
3.Use water injection temperature for the 4-65 is advisable. Water injection temperature higher than the value can be put forward in order to separately solve.
4.Water tank inside and outside of the other welding not welding, prevent damage porcelain face.
5.Water tank to the ground under should with structure design personnel for approval shall prevail.
6.Water tank should be regularly cleaned, try to prevent water into the trash.
Application
This galvanized steel water tank is widely used in storage and regulation of living water supply & construction water supply, and temporary water storage tanks for expansion of the heating system, condensate tank and construction, geological survey, industry, National defense Water, chemical, and so on. Taking flexible, reasonable plate design, suitable for all capacities combined water tank. Suitable for living water with PH value: 6.5-8.5, using life: ≥ 20 years
Packaging & Shipping
>> Packing: According to the order.
>> Delivery: Within 15 days after the payment was received.
